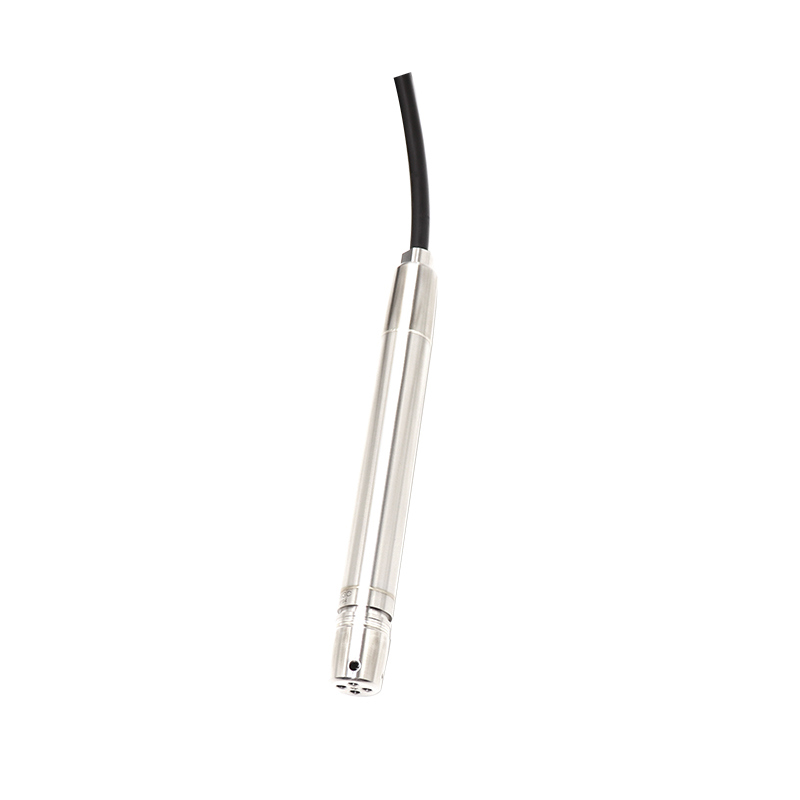

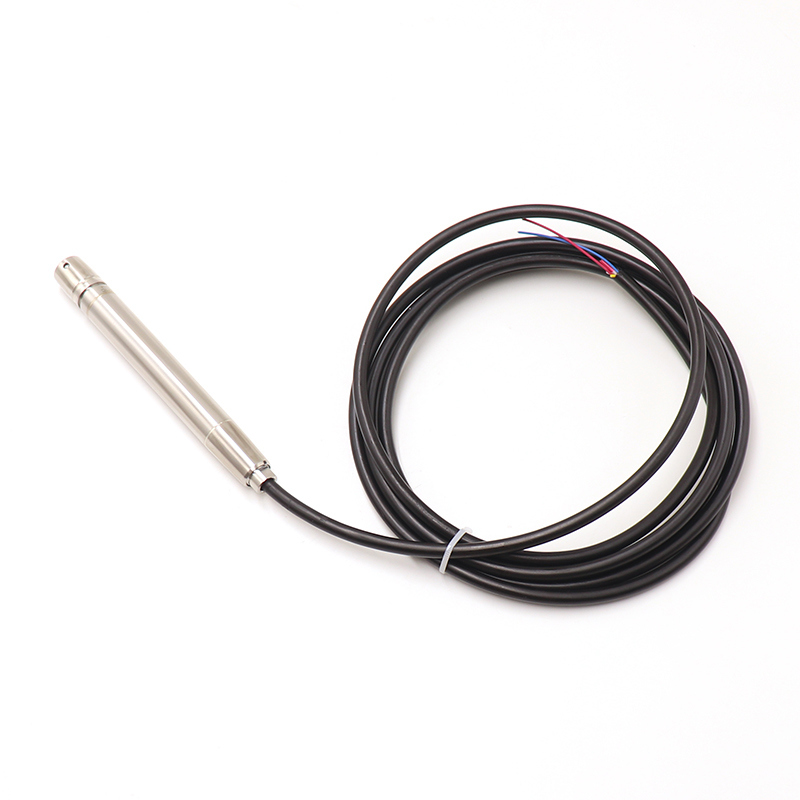

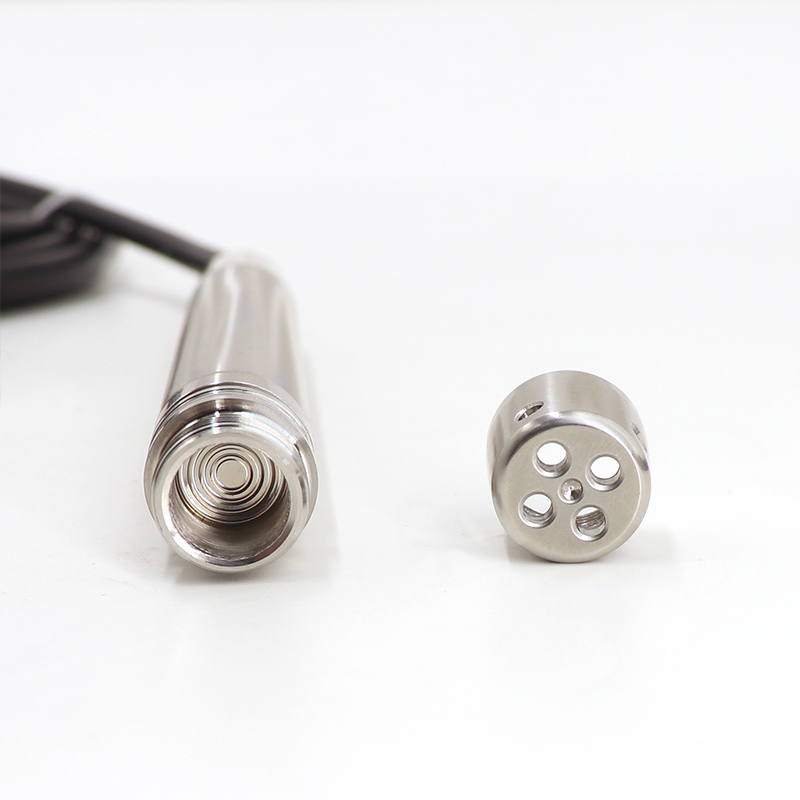

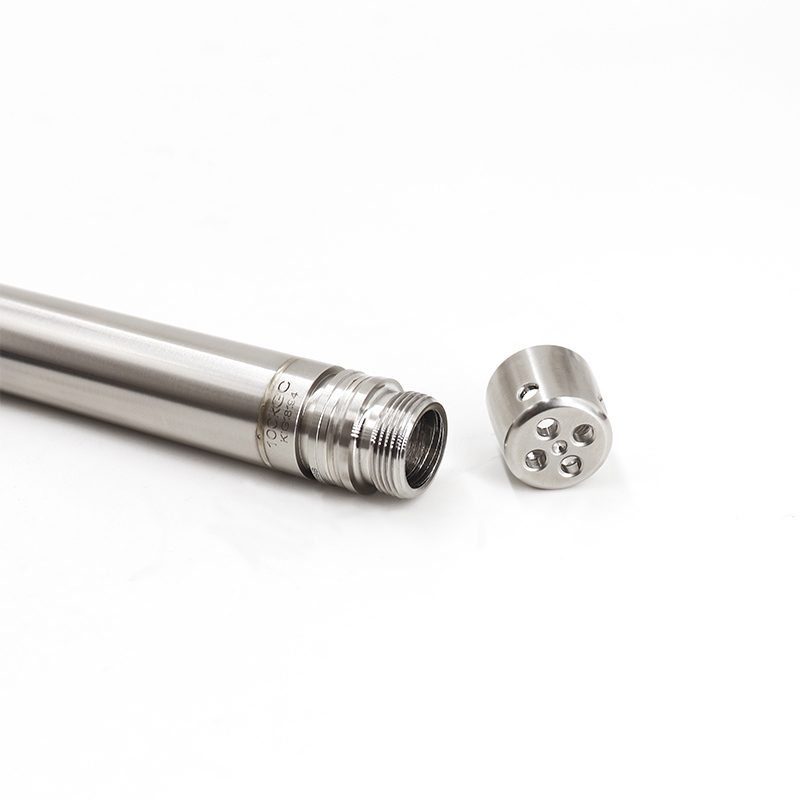

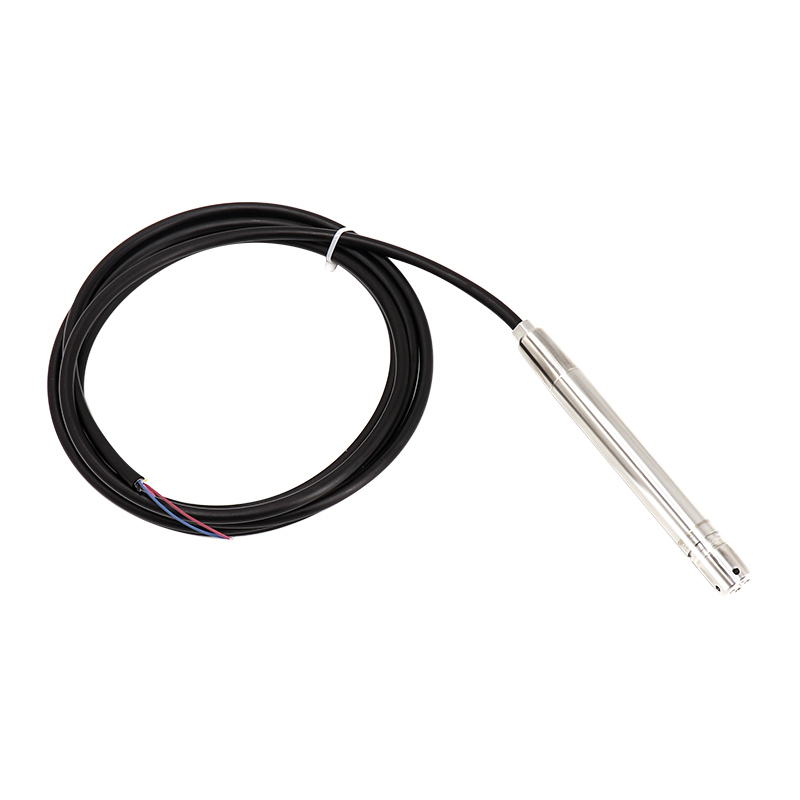

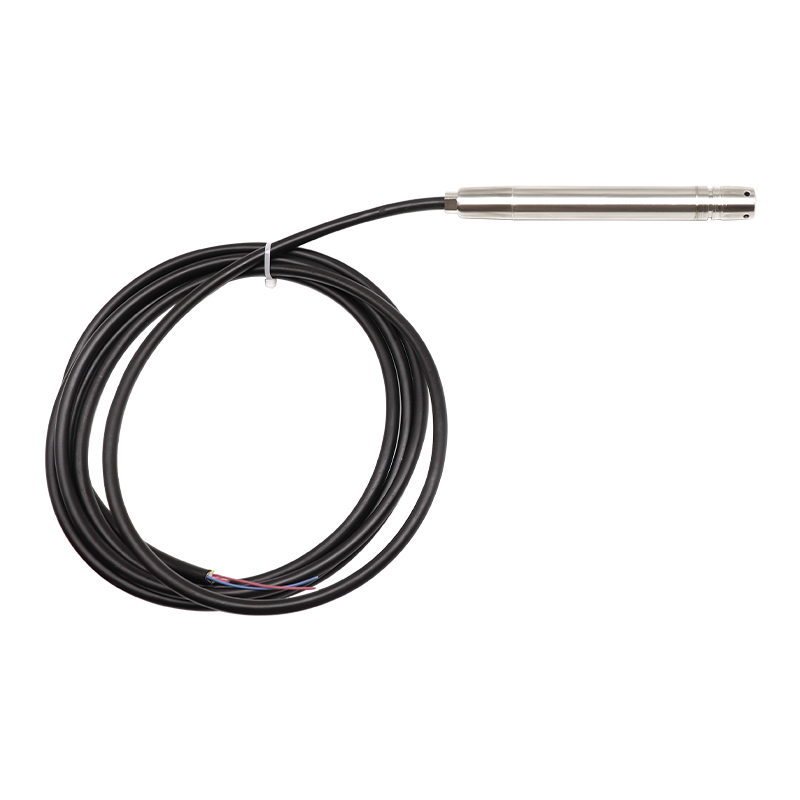

Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

Casa. > prodotti > Trasmettitore del livello dell'acqua >

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Luogo di origine:

Anhui, Cina

Marca:

WNK

Numero di modello:

WNK8010-19

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Garanzia:

1 anno

Supporto personalizzato:

OEM, ODM

Intervallo di pressione::

0... da 2 a 200 metri

Produzione:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Precisione:

00,2% FS, 0,5% FS,

Alimentazione elettrica:

12~36VDC

Classe di protezione:

IP68

Applicazione:

Acqua piovana, acqua potabile, acque reflue, acque reflue, acque di mare

Materiale abitativo:

304SS, 316L

Temperatura operativa::

-40~85 ℃

Tipo:

Misura

Servizio OEM:

OEM, ODM, personalizzazione disponibile

Porta:

SHANGHAI/NINGBO

Evidenziare:

19mm submersible water level sensor

deep well water level transmitter

small diameter borehole sensor

Termini di pagamento e spedizione

Quantità di ordine minimo

1pcs

Prezzo

$35.00 - $50.00/Pieces

Imballaggi particolari

Ogni set in un singolo cartone, protetto con schiuma.

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

T/T, Western Union, MoneyGram, PayPal

Capacità di alimentazione

2000 pezzi al mese sensore di pressione di livello

Prodotti correlati

Video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Ottieni il miglior prezzo

Video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Ottieni il miglior prezzo

Sensore di livello liquido OEM WNK 4-20mA 0.5-4.5V, idrostatico

Ottieni il miglior prezzo

Trasduttore di livello sommergibile Rs485 4-20mA Sensore di livello dell'acqua per serbatoio

Ottieni il miglior prezzo

Contattaci

86-551-65369655

Contattaci ora

Descrizione del prodotto

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
