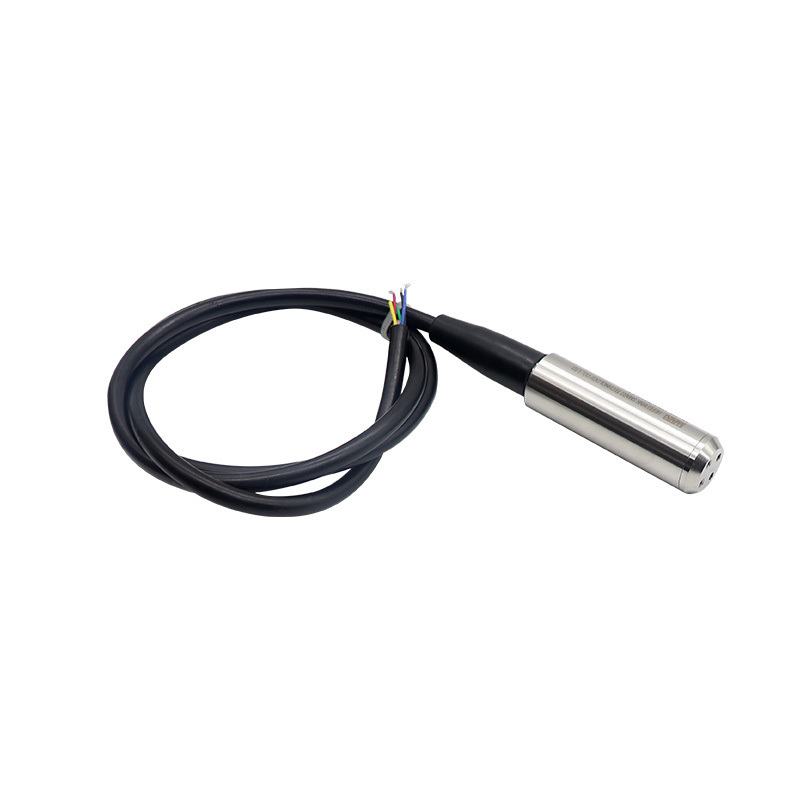

Name: ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-TT
Price: 42.00 USD
Availability: InStock

Casa. > prodotti > Trasmettitore del livello dell'acqua >

ATEX Explosion Proof IP68 Submersible Water Tank Level Sensor With 4~20mA RS485 Output

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Luogo di origine:

Anhui, Cina

Marca:

WNK

Numero di modello:

WNK8010-TT

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Garanzia:

1 anno

Supporto personalizzato:

OEM, ODM

Intervallo di pressione::

0... da 2 a 200 metri

Produzione:

4-20mA, 0-5V, 1-5V, 0,5-4,5V, 0-10V

Precisione:

00,2% FS, 0,5% FS,

Alimentazione elettrica:

12~36VDC

Classe di protezione:

IP68

Applicazione:

Acqua piovana, acqua potabile, acque reflue, acque reflue, acque di mare

Materiale abitativo:

304SS, 316L

Temperatura operativa::

-40~85 ℃

Tipo:

Misura

Servizio OEM:

OEM, ODM, personalizzazione disponibile

Porta:

SHANGHAI/NINGBO

Evidenziare:

ATEX explosion proof water level sensor

submersible water tank level transmitter

RS485 output water level sensor

Termini di pagamento e spedizione

Quantità di ordine minimo

1pcs

Prezzo

$35.00 - $50.00/Pieces

Imballaggi particolari

Ogni set in un singolo cartone, protetto con schiuma.

Tempi di consegna

5-8 giorni di lavoro

Termini di pagamento

T/T, Western Union, MoneyGram, PayPal

Capacità di alimentazione

2000 pezzi al mese sensore di pressione di livello

Prodotti correlati

Video

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

Ottieni il miglior prezzo

Video

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

Ottieni il miglior prezzo

Video

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

Ottieni il miglior prezzo

Video

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Applicable Media	Liquid, Water
Accuracy	≤ ±0.2%FS,
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68
