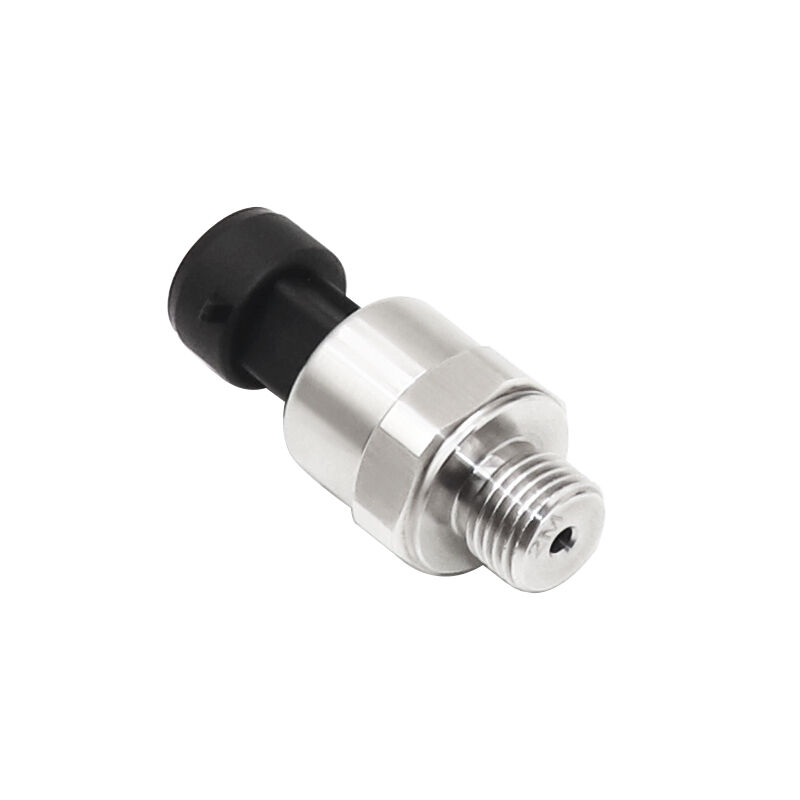

Name: WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125P
Availability: InStock

Casa. > prodotti > sensore di pressione dello iot >

WNK 0.5-4.5V G1/4 Coffee Machine Pressure Sensor Transmitter

G1/4 coffee machine pressure sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

Luogo di origine:

Chiano

Marca:

WNK

Numero di modello:

WNK125P

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Temperatura di conservazione:

-50 ℃ ~ 135C

Meedium:

Olio motore, olio di poe, refrigerante, gas, acqua o liquido

Precisione:

+1%FS (linearità, isteresi, ripetibilità, calibrazione)

Connettore elettrico:

Outlet packard/ cavo

Intervallo di pressione:

0 ~ 5bar, 0 ~ 10bar, 0 ~ 20bar, 0 ~ 40bar, (Cutomized)

Produzione:

0,5 V ~ 4,5 V DC, (10%-90%VCC)

Connessione di processo:

G1/ 4, 7/16-UNFFEMALE, (Cusomized)

Materiale:

Alloggio 304 SST; Parti bagnate 316L

Evidenziare:

G1/4 coffee machine pressure sensor

0.5-4.5V pressure transmitter

IOT coffee machine sensor

Termini di pagamento e spedizione

Prodotti correlati

Video

Food Grade 316 Pressure Sensor Transmitter 5V Output NPT1/4 for Coffee Machine

Ottieni il miglior prezzo

Video

WNK Pressure Transducer with Universal Industrial 4-20mA Absolute Vacuum Pressure Sensor Transmitter

Ottieni il miglior prezzo

Video

WNK 4-20ma Water Pressure Transmitter Sensor for HVAC and Water Treatment

Ottieni il miglior prezzo

Video

WNK 0-10bar 150Psi Npt 1/8 0.5-4.5V Trasduttore Sensore Pressione Acqua per Aria Gas

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

WNK Pressure Sensor for Coffee Machine

Product Description

The WNK125P is a diffusible silicon oil-filled pressure sensor designed forautomotive use. The element is made with a fully welded 316L diaphragm anddoes not require any O-ring seals that could come into contact with the pressuremedium, making it compatible with all types of liquids. The absence of anymoving parts results in a longer service life. With high temperature stability andaccuracy,this pressure sensor is mainly used in automotive, transmission, airconditioning and oil pressure measurement applications.

Feature

Multiple process connection options for easy installation. 1% typical accuracy, providing excellent accuracy for critical applications. Factory calibrated, no field calibration required. Plug-and-play reliability. Rugged, compact design saves installation space. OEM/ODM available to accommodate special needs.

Model	WNK125P
Power Supply	4.75~5.25VDC(( With reverse polarity protecticion overvoltage protection 32V DC
Supply current	15mA MAX
Pressure range	0~5Bar,0~10Bar,0~20Bar,0~40Bar,(Cutomized)
Output	0.5V~4.5V DC,(10%-90%VCC)
Process Connection	G1/4,7/16-UNFfemale,(cusomized)
Electrical connector	Pack
Working Temperature	-40℃C~130℃℃
Storage Temperature	-50℃~135C
Safe Pressure	1.5~2 time of the pressure range
Burst Pressyre	100Bar G
Accuracy	+1%F.S( Linearity,Hysteresis, Repeatability, Calibration)
Total Error Band	Static error band @25℃,5VDC,+3%(-30℃~125°℃)
Meadium	Engine oil, POE oil, refrigerant, gas, water or liquid
Mounting Torque	10~20N·m
Anti-freeze function	The sensor has no anti-freezing function when the sensor's working medium is water.
Material	Housing 304 SST; wetted parts 316L
