Name: Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK125SP
Availability: InStock

Casa. > prodotti > sensore di pressione dello iot >

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Luogo di origine:

CHIANO

Marca:

WNK

Numero di modello:

WNK125SP

Contattaci

Chiedi un preventivo

Dettagli del prodotto

Collegamento meccanico:

M6*1, personalizzato

Supporti applicabili:

liquido, gas

Tipo di pressione:

Pressione di calibro, pressione assoluta

Banda di errore del dispositivo:

±1,0%

Intervallo di pressione:

0-5bar, 0~10bar, 0~20bar, 0~40bar

Alimentazione elettrica:

5 V CC

Produzione:

0.5~4.5V, I2C

Precisione:

±1%FS

Evidenziare:

diffused silicon pressure sensor

oil-filled coffee machine sensor

IoT pressure sensor with warranty

Termini di pagamento e spedizione

Prodotti correlati

Video

ATEX CE 4-20mA 0,5-4,5V I2C -100kpa-100MP aria Trasduttore di pressione dell'acqua Sensore di pressione assoluta di vuoto Trasmettitore

Ottieni il miglior prezzo

Video

WNK125P 0.5~4.5V 150PSI Sensore di pressione 5Bar MAP Sensore di pressione automatica

Ottieni il miglior prezzo

Video

WNK Low Cost Compact Pressure Sensor 0,5-4,5V per olio acqua aria

Ottieni il miglior prezzo

Video

Sensore di Pressione in Silicio Diffuso 0-20 Bar 4-20mA ±0.5%FS Accuratezza 316L SS IP65

Ottieni il miglior prezzo

Contattaci

Contattaci ora

Descrizione del prodotto

WNK Low Cost Pressure Sensor for Beer Coffee Machine

Low Cost Diffused Silicon Oil-Filled Pressure Sensor for Coffee Machine 0

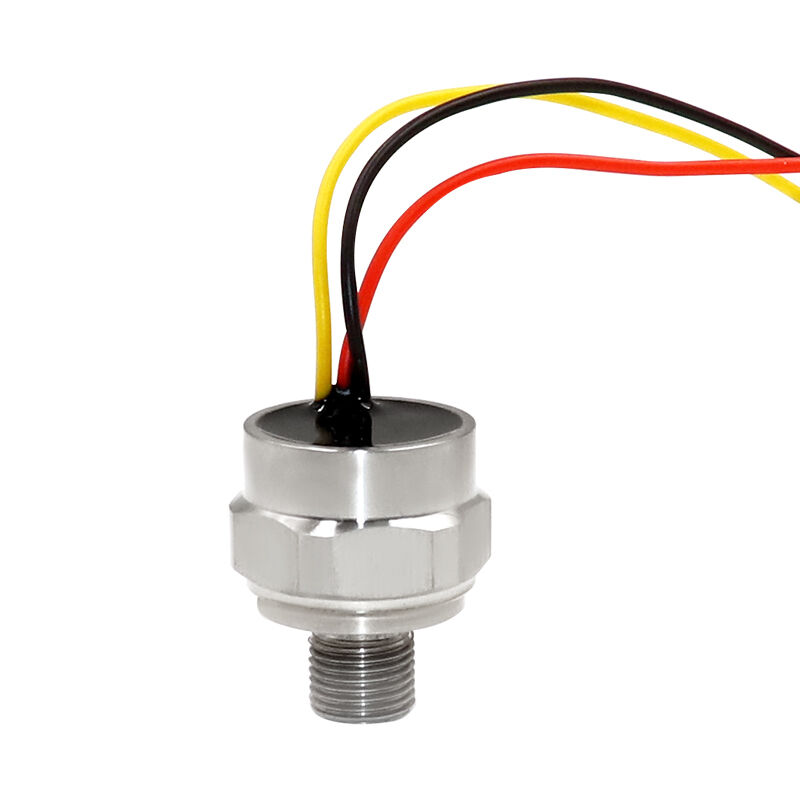

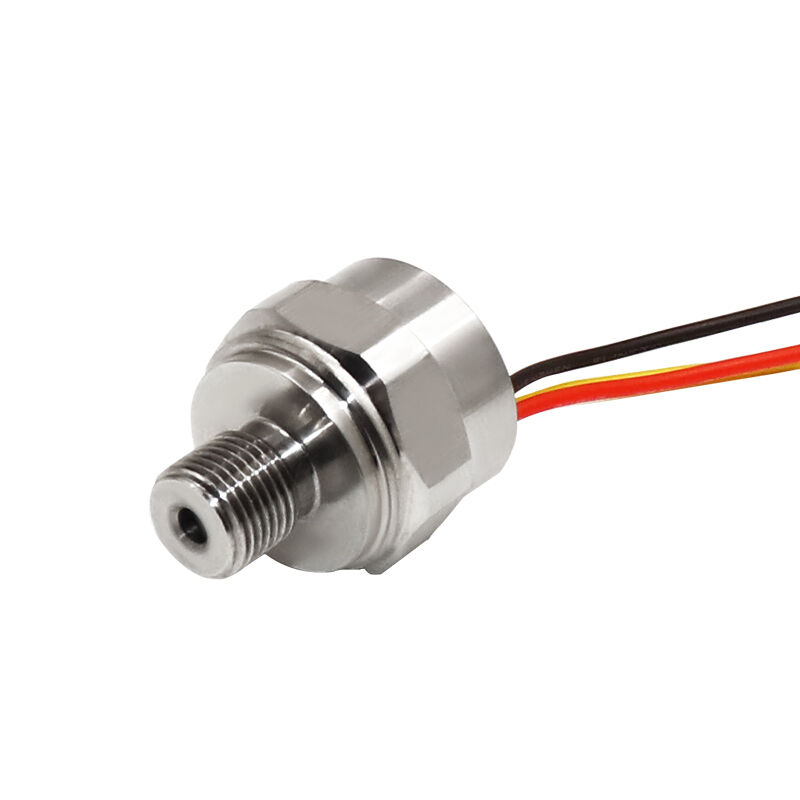

The WNK125PS is a diffused silicon oil-filled pressure sensor designed for automotive use. The element is made with a fully welded 316L diaphragm and doses not require and O-ring seals that could come into contact with the pressure medium, making it compatible with all types of liuqids. The absence of any moving parts results in a longer service life. With high temperature stability and accuracy, this pressure sensor is mainly used in Coffee Machine, Water Dispenser, Water Meter, automotive etc.

Applicable media	Liquid, Gas
Pressure Range	5bar,10bar,20bar,40bar
Pressure measurment	Gauge Pressure,Absolute pressure
Output	0.5~4.5V, I2C
Accuracy(linearity,Hysteresis and Repeatability)	1%F.S.(Typical)
Power supply	5VDC
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Power(electrical) connect	Customization Connector, Cable outlet
Mechanical Connection	M6*1
Housing Material	304 stainless steel(inner core is 316 stainless steel)
Protection	IP68

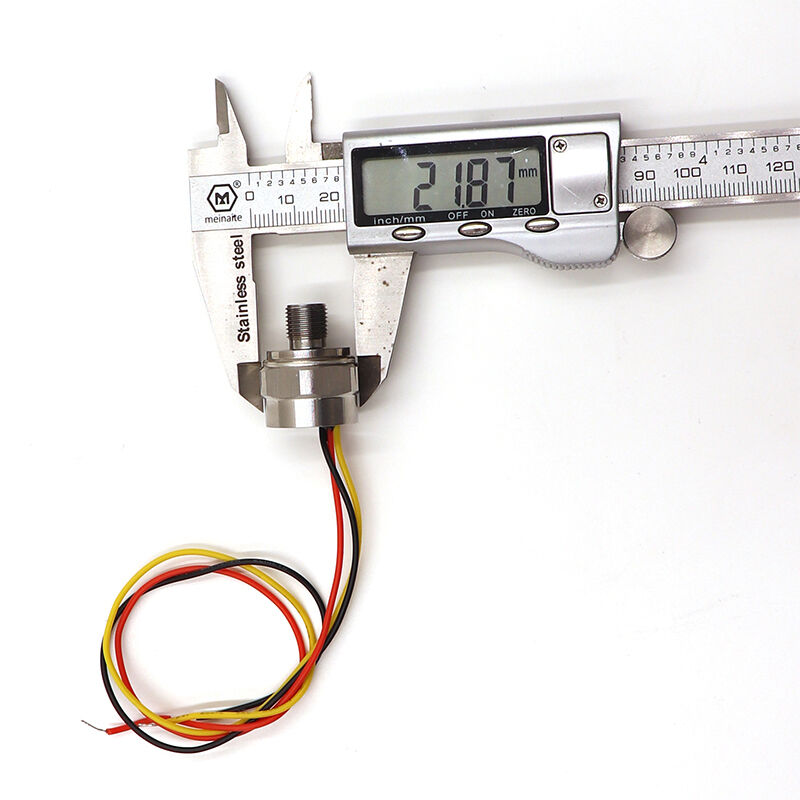

Dimensions

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea

If you have any questions, please feel free to contact me
